| DIMENSION (W x L): |
200x2500mm; 200x2900mm; 200x3300mm; 200x3600mm; 200x3900mm; 200x4500mm; 200x4900mm; 200x5900mm. |
| THICKNESS(MM) |
80mm |

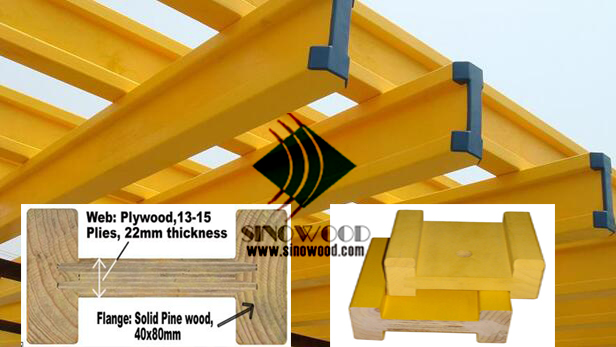

| FLANGE MAT.: |
Solid sawn radiate pine/Douglas fir lumber flange or Pine LVL flange |
| WEB BOARD: |
Pine LVL Plywood,Thickness 27mm |
| PAINTING: |
Yellow Waterproof Paint |
| GLUE: |
WBP (PF Adhesive),PURBOND HB 221 |
| GRADE: |
A/A,A/B |
| STANDARD: |
EN13377:2002 |
| TECHNICAL DATA: |
Weight per running meter: 4.6-5.8 kg Bending moment max.5 Kn/m Cutting action max 10.0KN Bending max1/500 Live load max 1.5 KN/m2 |
| PAYMENT MODE: |
L/C; T/T to be negotiable; |

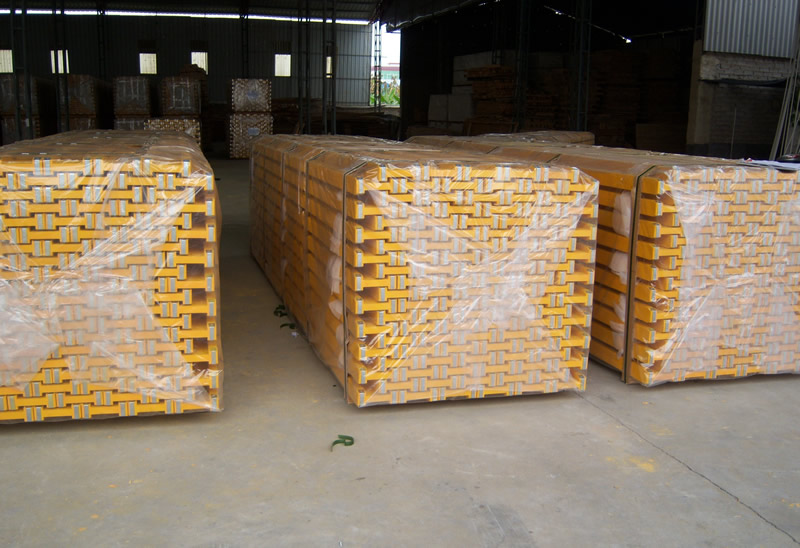

| PACKING& Loading: |
Wraped with Carton Paper+ Iron Tape for strenth；Loading:60CBM=approx 4680m/40"HC. |

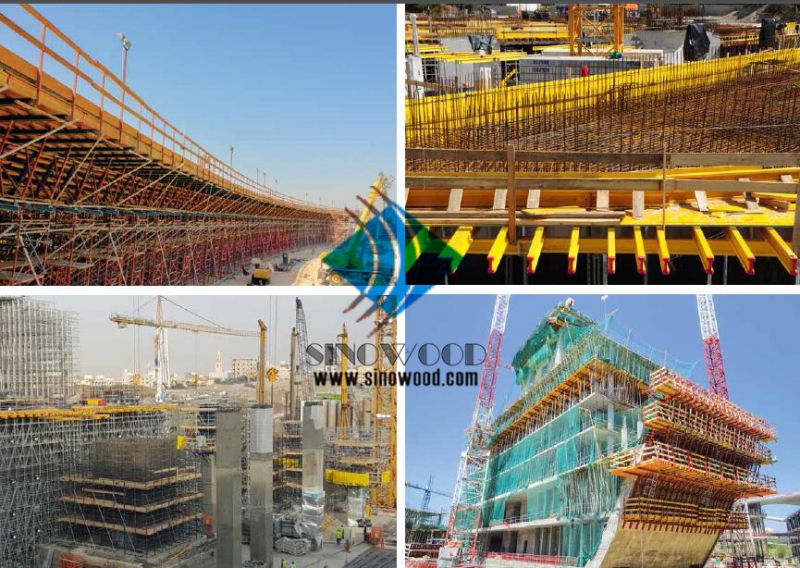

| USAGE: |
For construction use. Carry film faced plywood. |
